Cable And Wire Terminals

Code:DTL
Cable Size:
Description:



Material: E-Cu; A1-99.6%
Surface treatment: Bright

Products property: Due to the coupling effect when Aluminium comes in contact with Copper, corrosion will happen in a short time. Currently the best solution is to use Aluminium-Copper bimetal connectors. A bimetal lug should be used for termination
The friction welding is well done. And its barrel capped is illed with joint compound to avoid oxidization

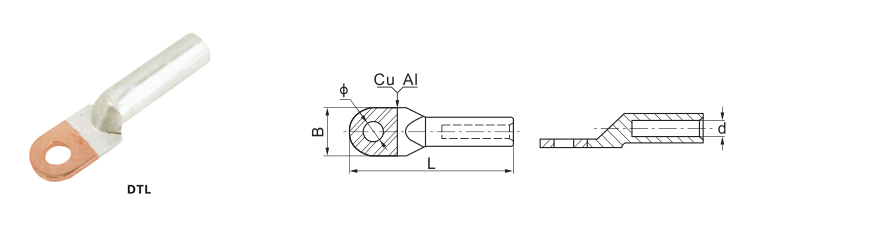

Type

Dimensions(mm)

L

d

B

Φ

DTL 10-6

62

4.8

13.5

6.5

DTL 16-8

70

5.8

16

8.5

DTL 25-8

75

7.2

17.5

8.5

DTL 35-10

85

8.5

20

10.5

DTL 50-10

90

9.7

23

10.5

DTL 70-12

102

11.5

26

12.5

DTL 95-12

112

13.5

28

12.5

DTL 120-14

120

15

31

14.5

DTL 150-14

125

16.5

35

14.5

DTL 185-16

133

18.5

37.5

17

DTL 240-16

140

21

40

17

DTL 300-18

160

23.5

44.5

18.5

DTL 400-20

170

27

50

21

DTL 500-20

225

29

60

21
